Model TD510ZMK2 SV TD510ZMK2 BK TD510ZMK2 WH
10cm Diameter Full-Range Speaker System
Colour Available Silver Black White
Speaker Unit 10cm Diameter Full-Range, Fibreglass
Frequency Response 42Hz-22kHz(-10dB)
Efficiency/
Sensitivity
84dB/W・m
Input Resistance (Rating/Max) 25W/50W
Impedance
Angle Adjustment -10°~15°
Maximum Dimensions (mm)
W384×H978×D393
Weight (per Speaker) Approx. 19.5kg
Accessories Grille x 1, Plug x 5
Brochures and Manuals

All Products Brochure
(PDF:Approx. 8.0MB)

5 Series Brochure
(PDF:Approx. 2.5MB)

TD510ZMK2 Manual
(PDF:Approx. 690KB)

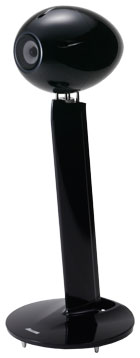

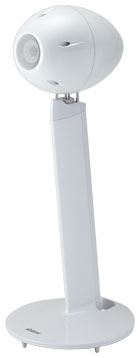

Remarks: TD510ZMK2 is a floor standing speaker system. The speaker and stand are not available separately. If you prefer to have pedestal stand model, choose TD510MK2.
