Getting the best performance from your speakers

This speaker sets a new standard for a pedestal design and features a lot of the technology and adjustment offered by our flagship speaker, albeit in a simplified form.

It is suited to many applications: as a standard high quality stereo speaker, audio visual / multichannel, and distributed audio. The type of application will determine the placement to obtain the best performance.

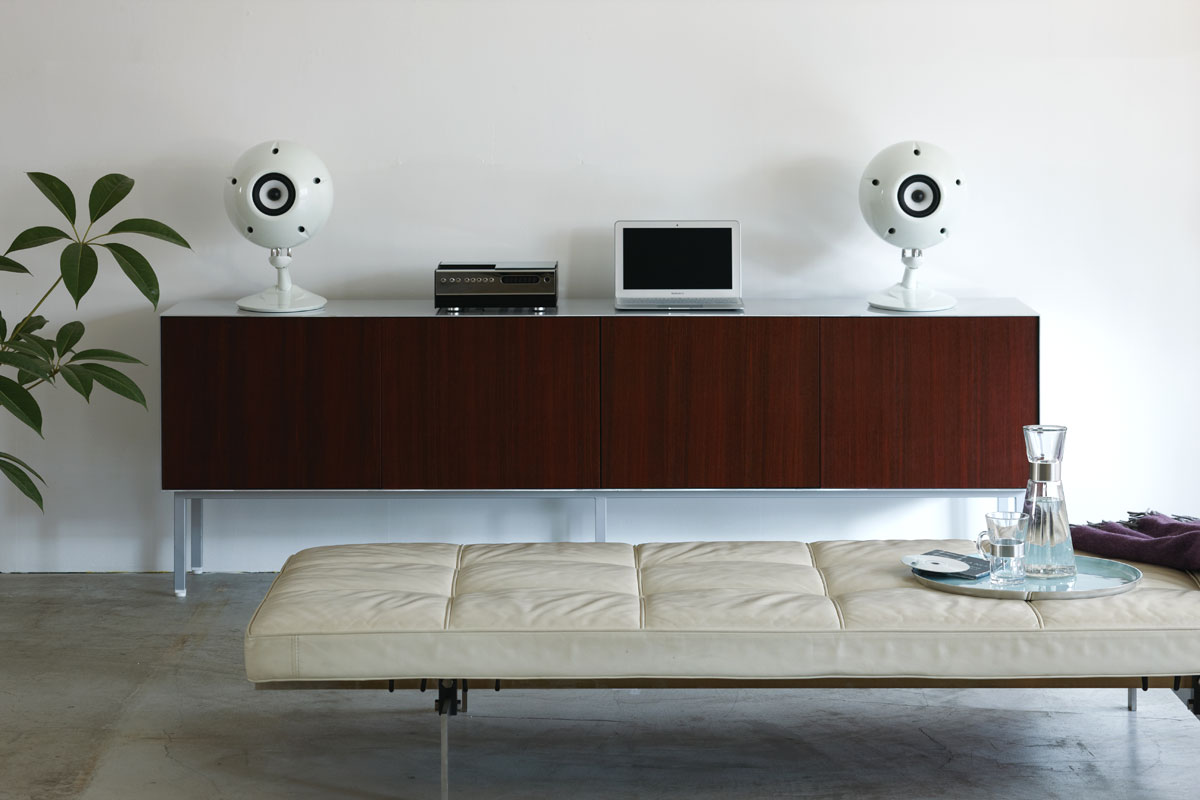

If it is being used as quality stereo monitor you will need to provide a suitable stand, unless you are locating the speaker on a cabinet or shelf. In the case of a floor standing set up, you need to provide a suitable solid stand that is 60cm tall, to obtain the best results. Depending on your listening position you will need to fine tune the angle of the speaker, vertical adjustments of -10 to 30 degrees are provided.

Positioning the speaker correctly within your room will offer benefits. For free space use, we would suggest that you start with a distance of some 50cm of free space behind the speaker and then fine-tune the distance until you obtain your preferred balance between the bass output and the depth of stereo image. We would also suggest that you have a minimum distance of 175cm to 200cm between the speakers depending on the distance of your seating position.

TD510MK2 is more than capable of revealing the quality of the accompanying elements in your system. Select the best source possible whether it is digital or analog. An amplifier of 25>50 watts rms should be sufficient for most rooms and once again it is the quality that is of paramount importance.

We would also suggest that you select loudspeaker cable from a recognised manufacturer to ensure quality reproduction; the speaker terminals will accept bare wires or 4mm speaker plugs. To be able to run the cable through the groove in the arm assembly, use speaker cable of no more than 7mm diameter.

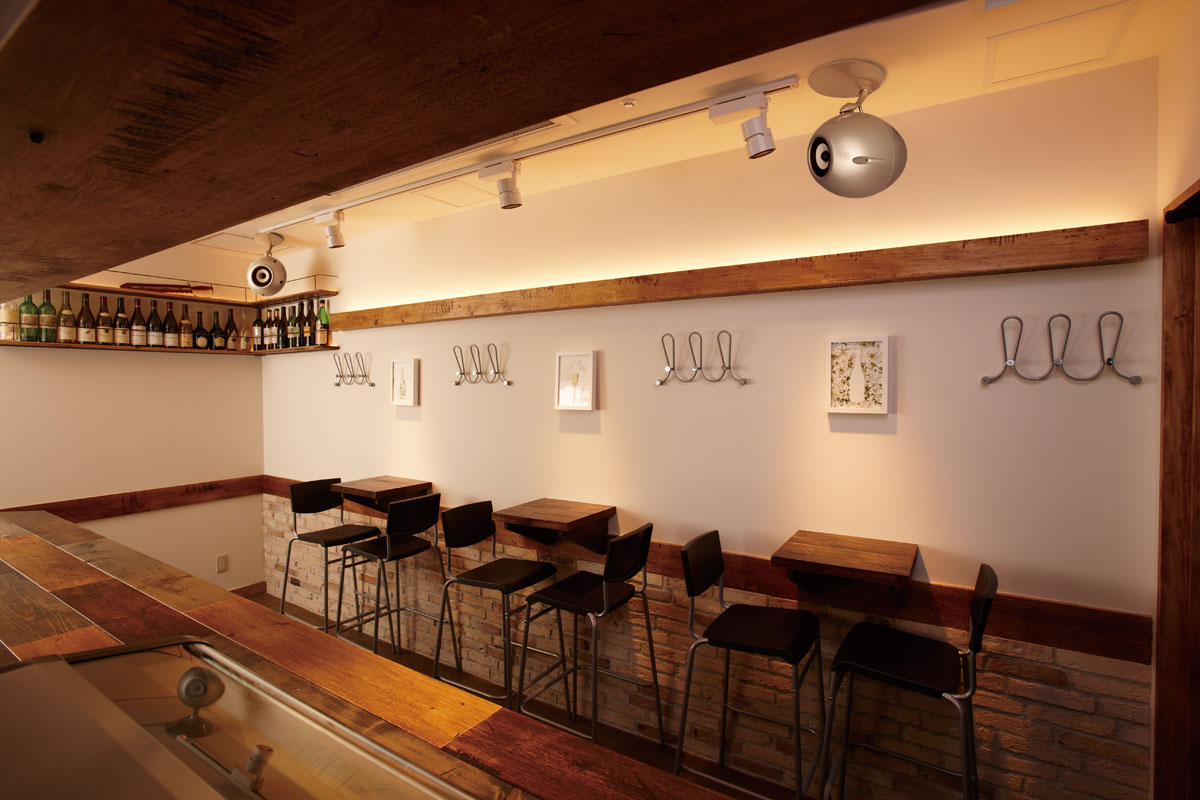

This speaker is designed to allow mounting on a ceiling using our dedicated fixing kit the CB1, for each speaker. If the product is ceiling mounted the range of vertical adjustment is between -10 to 75 degrees, achieved by moving the pedestal arm to the relevant slot.

For detailed information, you can visit the "download" section of our website to obtain a copy of the dedicated product manual.
